Overview

In this exercise, you will learn how to call a Grand Central (GC) connector. You will call a already deployed Template Connector called Health connector. The Grand Central Generic API called Health API is already deployed automatically to all Grand Central iPaaS installations and contains a simple endpoint getVersion that returns its version.

​
Key learning outcomes

  • How to obtain an API endpoint.
  • How to obtain an API subscription key.
  • Execute a cURL request against APIM, verify the output.

​
Obtain the Connector API URL

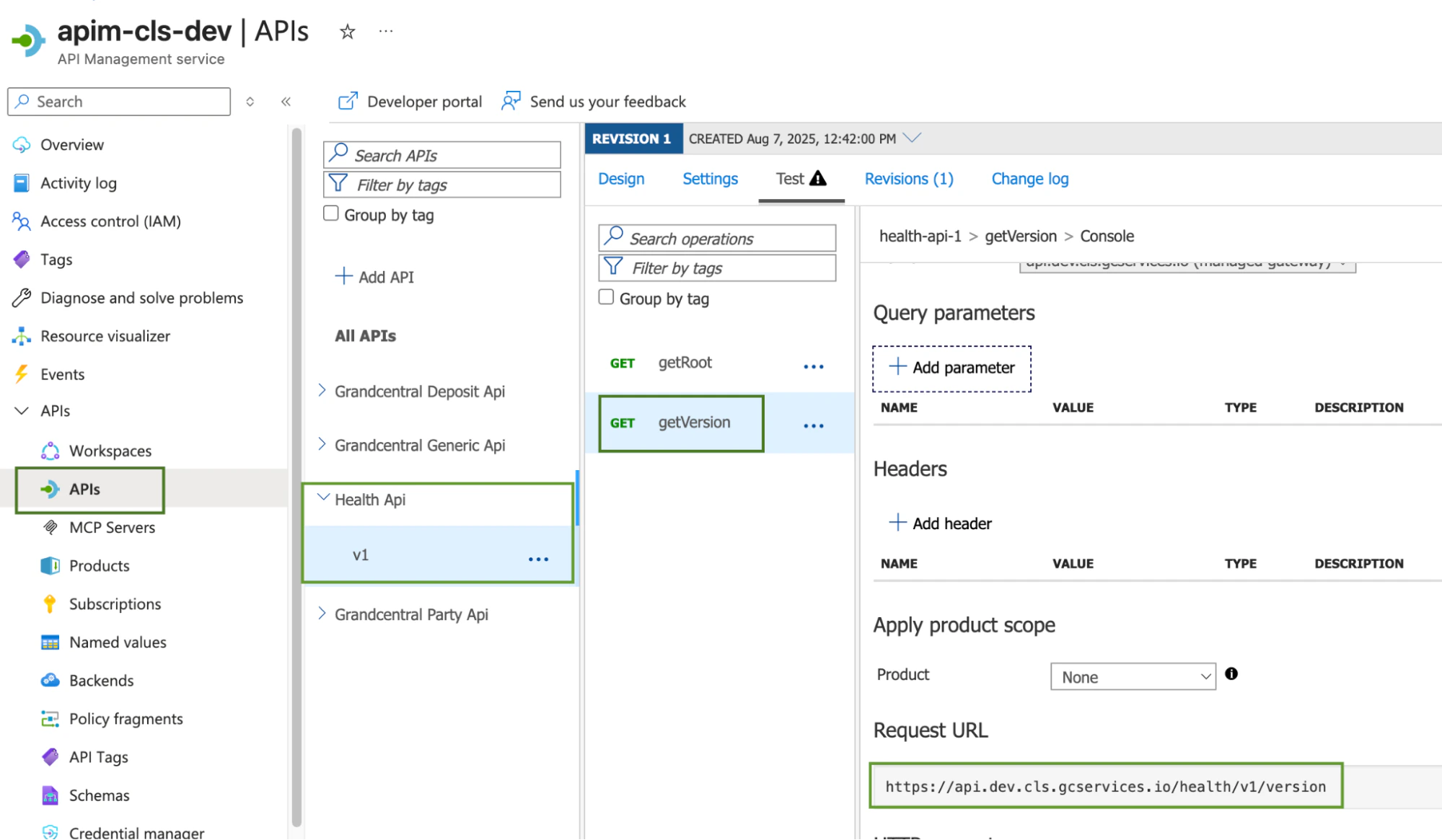

To retrieve the connector URL from the APIM resource on the Azure portal the role dev-apim-ro should be assigned in self-service in order to have access to Azure APIM pages. Follow the path in Azure APIM Portal: APIs -> Health Api -> v1 -> getVersion -> Request URL field
Connector URL and Subscription key location in the Azure portal
This is applicable for all connectors, each API deployed is available on this Azure resource.
The API Request URL pattern is:
https://api.${runtime}.${installation}.gcservices.io/${api-spec-endpoint}

​
Obtain APIM Product Subscription Key

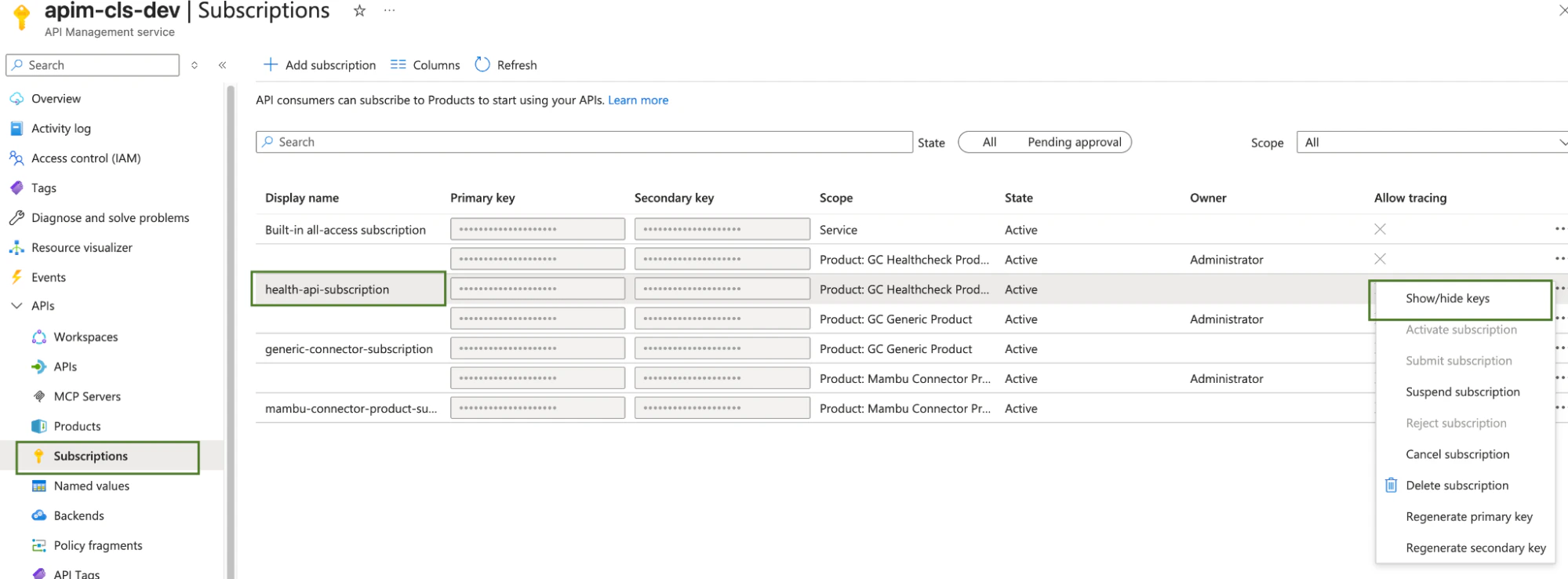

The APIM Product Subscription key can also be obtained from the Azure Portal under the Subscription tab. To obtain the Grand Central Generic API subscription follow the below steps highlighted in the image below. The primary key will be the value used in the connector call below.
Obtain Azure APIM Subscription key

​
Calling the Connector

Now you have retrieved the connector URL and the subscription key from the above steps. It’s now time to call the connector by executing an HTTP GET request.
Ensure you are on the Backbase VPN and are routing the request through the Backbase proxy.

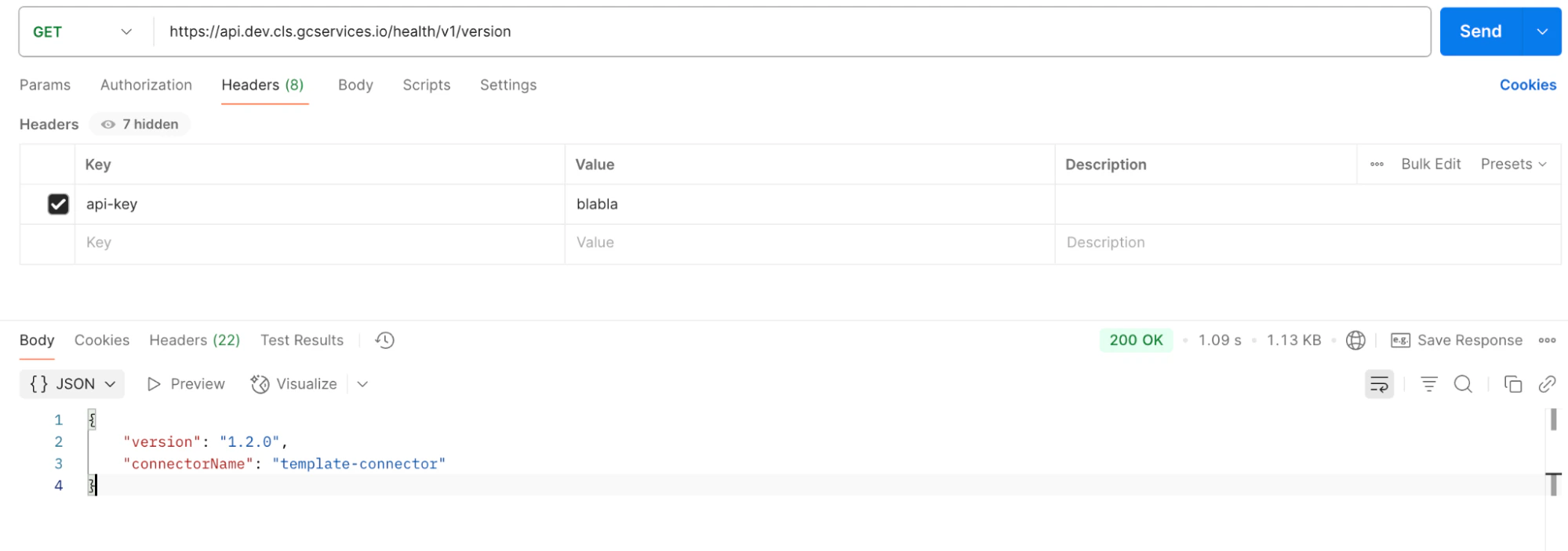

Request Generic API from APIM portal
Every request to the APIM needs an Api-Key request header for routing and authorization. This header should contain the subscription key value. Ensure the Api-Key header value matches the primary key value from the preceding step.

​
Example request

GET https://api.dev.ecos.gcservices.io/version
Api-Key: <primary-key-from-subscription>
