This page is the operational guide for running Sync Hub. It covers how to:

Manage Azure Service Bus topics and subscriptions through GitOps.
Deploy and configure the Sync Hub producer, which publishes events.
Deploy and configure the Sync Hub consumer, which forwards events to APIM.

For the high-level concept and patterns, see Sync Hub overview and integration patterns.

Prerequisites

Before you start, make sure you have:

Access to your organization’s gc-${org}-applications-live repository.
ArgoCD and Azure Service Operator (ASO) deployed in the target runtime.
Access to the shared ACR (gcshared671.azurecr.io/charts) for Helm charts.
An Azure Service Bus namespace with managed identity configured.
Network connectivity between the runtime cluster, Azure Service Bus, and APIM.

How the pieces fit together

Source connector → Producer → Azure Service Bus topic / subscription → Consumer → APIM → Backbase Unified APIs. Topics and subscriptions are infrastructure that you manage declaratively using Git and ArgoCD. The producer and consumer are Spring Boot services that you deploy as Helm charts.

Topic and subscription management

You manage topics and subscriptions in the gc-${org}-applications-live repository under each runtime directory. The synchub folder contains the Azure Service Bus configuration for that runtime in servicebus.values.yaml. ArgoCD automates the continuous deployment of Azure Service Bus custom resources through Azure Service Operator (ASO).

Location of the configuration

Each runtime stores the file at:

https://github.com/bb-ecos-${org}/gc-${org}-applications-live/tree/main/runtimes/${runtime}/synchub/servicebus.values.yaml

Replace ${org} with your organization and ${runtime} with the target runtime. To add a new topic or subscription, add the configuration in the servicebus.values.yaml file under the synchub folder for the target runtime.

Configuration schema

The configuration supports a number of optional and required parameters for topics and subscriptions:

topics:
  - name: default                        # Must-Be-Changed
    maxSizeInMegabytes: 5120             # Optional-To-Change
    autoDeleteOnIdle: ""                 # Optional-To-Change
    enablePartitioning: false            # Optional-To-Change
    supportOrdering: false               # Optional-To-Change

    subscriptions:
      - name: sub1                                        # Must-Be-Changed
        maxDeliveryCount: 10                              # Optional-To-Change
        requiresSession: true                             # Optional-To-Change
        autoDeleteOnIdle: ""                              # Optional-To-Change
        defaultMessageTimeToLive: "P14D"                  # Optional-To-Change
        deadLetteringOnMessageExpiration: true            # Optional-To-Change
        lockDuration: "PT1M"                              # Optional-To-Change
        deadLetteringOnFilterEvaluationExceptions: false  # Optional-To-Change

The file can contain one or more topics, and each topic can include one or more subscriptions.

Example configuration

The following example creates a payment-status-mb-dev topic on Azure Service Bus with a payment-order-service subscription that has sessions turned off:

---
topics:
  - name: payment-status-mb-dev
    maxSizeInMegabytes: 5120
    autoDeleteOnIdle: ""
    enablePartitioning: false
    supportOrdering: false
    subscriptions:
      - name: payment-order-service
        maxDeliveryCount: 10
        requiresSession: false
        autoDeleteOnIdle: ""
        defaultMessageTimeToLive: "P14D"
        deadLetteringOnMessageExpiration: true
        lockDuration: "PT1M"
        deadLetteringOnFilterEvaluationExceptions: false

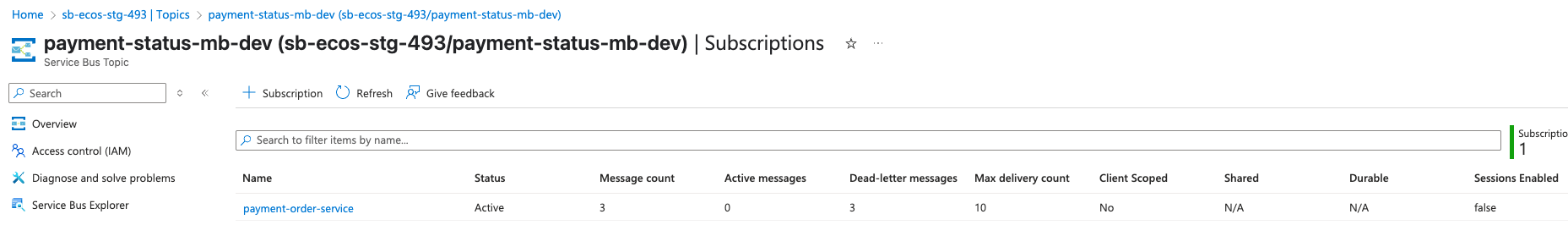

The preceding example produces a topic and subscription that look like this on Azure Service Bus:

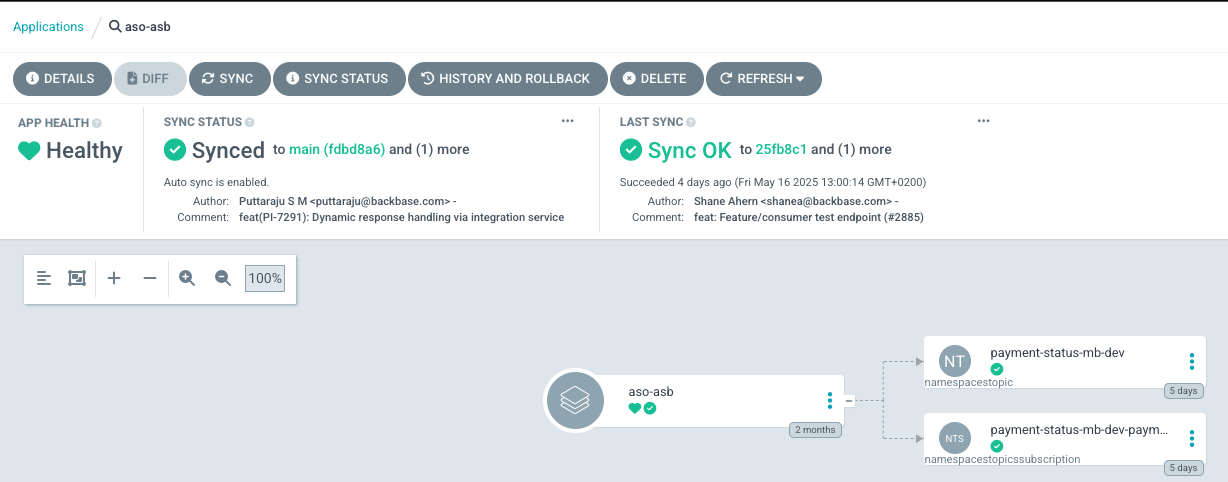

How ArgoCD applies changes

After you merge the change, ArgoCD picks it up and applies it through Azure Service Operator. To monitor the change, check the aso-asb app in Argo for the runtime.

Producer deployment and configuration

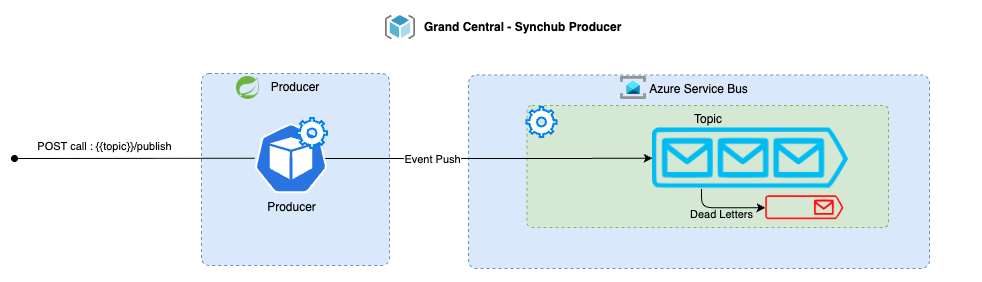

The Sync Hub producer is a platform component that publishes payloads to topics on Azure Service Bus. It uses Spring Boot and the Azure Service Bus SDK.

Deploy the producer

Deploy the producer to a Sync Hub-enabled environment through gc-${org}-applications-live, the same way as any connector. Use the chart versions available under the shared ACR:

- repoURL: gcshared671.azurecr.io/charts
  chart: asb-producer

The following example Application file goes under gc-${org}-applications-live/${runtime}/apps/:

---
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: synchub-producer
  namespace: argocd
spec:
  project: grandcentral
  destination:
    server: https://kubernetes.default.svc
    namespace: synchub-producer
  sources:
    - repoURL: git@github.com:gc-devops-${org}/gc-${org}-applications-live.git
      targetRevision: main
      ref: apps-live

    - repoURL: gcshared671.azurecr.io/charts
      chart: asb-producer
      targetRevision: "${CHART_VERSION}"
      helm:
        releaseName: asb-producer
        valueFiles:
          - $apps-live/runtimes/${runtime}/values/synchub-producer/producer.values.yaml
  syncPolicy:
    automated:
      prune: true
      allowEmpty: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=false

Replace ${CHART_VERSION} with the asb-producer chart version available in your shared ACR.

Required producer configuration

The producer uses the following configuration properties to communicate with Azure Service Bus.

`backbase.grandcentral.events.servicebus.fullyQualifiedNamespace`

Sets the fullyQualifiedNamespace of the Azure Service Bus to connect to. Format: my-sb-namespace.servicebus.windows.net.

`backbase.grandcentral.events.servicebus.activeTopics`

Lists the topics this producer instance can publish messages to. At least one active topic must be present, otherwise the producer fails on startup. Example value:

backbase.grandcentral.events.servicebus.activeTopics: "payment-status-mb-dev, account-mb-dev"

`backbase.grandcentral.events.servicebus.sessionGroups.${topic}`

Defines all session groups for a specific topic. Session groups ensure message ordering. Example configuration for an account topic with two session groups:

backbase:
  grandcentral:
    events:
      servicebus:
        activeTopics: account
        fullyQualifiedNamespace: ${FULLY_QUALIFIED_NAMESPACE}
        sessionGroups:
          account:
            sessionList:
              - session-account-1
              - session-account-2

Call the producer

Connector labels required

The producer accepts connections only through intra-cluster communication. Only connectors deployed in the same runtime can interact with it, and only after you configure these pod labels:

app.gcservices.io/synchub-enabled: "true"
app.gcservices.io/synchub-type: "producer"

The Helm plugin supports additional pod labels through connector.customLabels:

connector:
  customLabels:
    app.gcservices.io/synchub-enabled: "true"
    app.gcservices.io/synchub-type: "producer"

Service URL

Resolve the producer using the Kubernetes FQDN. For the example Application file, the release name is asb-producer, so the producer service is available at:

http://asb-producer.synchub-producer.svc.cluster.local

Producer endpoint

The service exposes a POST endpoint for publishing to topics. Pass the topic name as a path variable. The following table shows the producer endpoint pattern for each topic.

URL	Action
`http://asb-producer.synchub-producer.svc.cluster.local/account/publish`	Publishes to the `account` topic
`http://asb-producer.synchub-producer.svc.cluster.local/payment-status/publish`	Publishes to the `payment-status` topic

Required request headers

eventSource - The source of the generated event.
eventVersion - The version of the event.
identifier - The unique identifier of the target resource.
traceParent - The unique tracing ID.

Optional request headers

bbEventType - Package path of the event handler used for Backbase SDK processing.
traceState - Vendor-specific trace identification.

Example request

The following example shows the shape of a publish request. The data field contains the event payload, and its structure depends on the topic and event your connector publishes. The paymentTransaction payload is illustrative. Substitute the domain object that fits your event. For example, account, customer, or loanApplication.

POST http://asb-producer.synchub-producer.svc.cluster.local/account/publish
Content-Type: application/json
identifier: 123
eventSource: com.backbase.ebp.account
eventVersion: 1.0
bbEventType: com.backbase.payment.event.spec.v1.PaymentOrderStatusEvent
traceParent: 00-6debf1ea-652d-4f03-b3a5-01
traceState: idempotent_request_key='6debf1ea-652d-4f03-b3a5-c69b0d96208'

{
  "eventSource": "com.backbase.ebp.account",
  "eventVersion": "1.0",
  "identifier": "123",
  "dateTime": "2023-11-13T20:20:39+00:00",
  "dataContentType": "application/json",
  "traceParent": "00-6debf1ea-652d-4f03-b3a5-01",
  "traceState": "idempotent_request_key='6debf1ea-652d-4f03-b3a5-c69b0d96208'",
  "data": {
    "paymentTransaction": {
      "id": "BR12345678901234567890123456789012345678901234567890123456789012",
      "paymentReference": "c10530e5-611d-43dc-b786-a26edb773985",
      "uetr": "6debf1ea-652d-4f03-b3a5-c69b0d96208",
      "type": "Wire",
      "status": "REJECTED",
      "scheduledExecutionDate": "2024-07-23T14:30:00Z",
      "valueDate": "2024-07-24T14:30:00Z",
      "deliveryDate": "2024-07-25T14:30:00Z",
      "exchangeRate": {
        "currency": "EUR",
        "rate": 0.8457,
        "isIndicative": false,
        "contractId": "FCC-USD-9999222381"
      },
      "amount": 250.00,
      "currency": "USD",
      "customFields": {
        "traceCode": "1212-1212121-12121212"
      }
    }
  }
}

Call the producer from an inbound connector

An inbound connector doesn’t need to construct the HTTP call by hand. You wire the connector to the producer through a small set of properties. The same code can then publish to any topic by changing configuration alone. The following table describes the properties for wiring a connector to the producer.

Property	Purpose
`asb.event.type`	Backbase event spec class for the payload. Corresponds to the `bbEventType` request header.
`asb.event.source`	Source domain that produced the event. Corresponds to the `eventSource` request header.
`asb.event.version`	Schema version of the event. Corresponds to the `eventVersion` request header.
`asb.event.topic`	Azure Service Bus topic to publish to. Forms the `{topic}` path variable in the producer endpoint.
`asb.producer.apiUri`	Base URL of the producer service in the same runtime.

The connector builds the full endpoint as ${asb.producer.apiUri}/${asb.event.topic}/publish and sets the three event headers from the matching asb.event.* properties on every publish. The following example shows an inbound connector publishing party updates to the party-updates topic:

asb.event.type=com.backbase.party.event.spec.v1.PartyUpdateEvent
asb.event.source=com.backbase.party
asb.event.version=1.0.0
asb.event.topic=party-updates
asb.producer.apiUri=http://asb-producer-v0.synchub-producer.svc.cluster.local

You still set per-request values such as identifier and traceParent on the outbound request itself, because they change for each event. The connector pod must also carry the labels described in Connector labels required before it can call the producer.

Consumer deployment and configuration

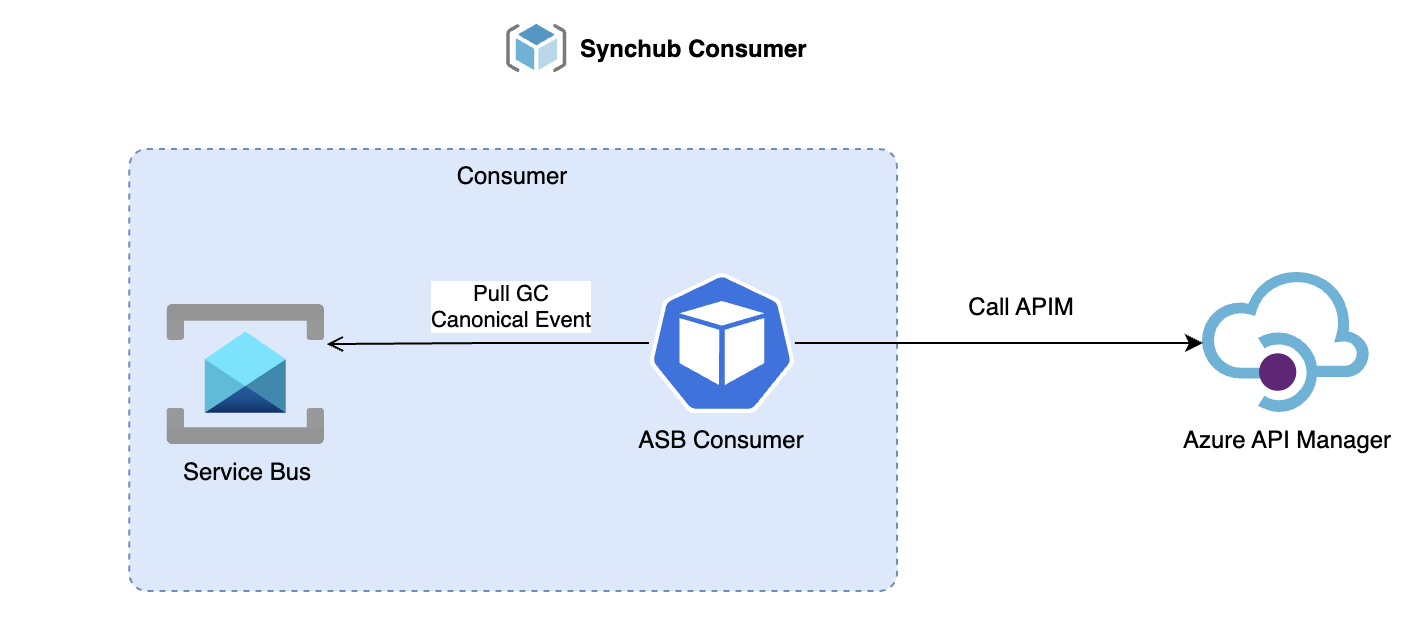

The Sync Hub consumer is a platform component that reads messages from Azure Service Bus and routes each message to APIM based on configuration. It uses Spring Boot and the Azure Service Bus SDK.

Deploy the consumer

Deploy the consumer to a Sync Hub-enabled environment through gc-${org}-applications-live, the same way as any connector. Use the chart versions available under the shared ACR:

- repoURL: gcshared671.azurecr.io/charts
  chart: asb-consumer

The following example Application file goes under gc-${org}-applications-live/${runtime}/apps/:

---
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: synchub-consumer
  namespace: argocd
spec:
  project: grandcentral
  destination:
    server: https://kubernetes.default.svc
    namespace: synchub-consumer
  sources:
    - repoURL: git@github.com:gc-devops-${org}/gc-${org}-applications-live.git
      targetRevision: main
      ref: apps-live

    - repoURL: gcshared671.azurecr.io/charts
      chart: asb-consumer
      targetRevision: "${CHART_VERSION}"
      helm:
        releaseName: asb-consumer
        valueFiles:
          - $apps-live/runtimes/${runtime}/values/synchub-consumer/consumer.values.yaml
  syncPolicy:
    automated:
      prune: true
      allowEmpty: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=false

Replace ${CHART_VERSION} with the asb-consumer chart version available in your shared ACR.

Required consumer configuration

The consumer configuration falls into two main groups:

Azure API Management configuration.
Azure Service Bus configuration.

Azure API Management configuration

`backbase.grandcentral.apim.http.baseUrl`

Base URL of the API Management Gateway. For example: https://api.stg.ecos.gcservices.io.

`backbase.grandcentral.apim.http.subscriptionHeaderKeyName`

Subscription key header value for APIM authentication. Defaults to api-key if you don’t define a value.

`backbase.grandcentral.apim.topicEndpoints.${topic}.${topicSubscription}.outboundConnectorUrl`

Configuration under topicEndpoints applies to a specific topic and subscription. The outbound connector URL supports variable substitution for flexibility on the APIM endpoint. Substitute ${id} for the identifier. The following table shows URL pattern examples for the outboundConnectorUrl property.

Pattern	Example
ID-specific endpoint	`/unified-party-api/v1/accounts/${id}`
Bulk endpoint with no ID	`/unified-party-api/v1/bulk/accounts`

You can configure separate connector URLs and APIM subscription keys for the same topic but different Azure topic subscriptions:

backbase:
  grandcentral:
    apim:
      topicEndpoints:
        account:
          account-sub:
            subscriptionkey: ${ACCOUNT_SUBSCRIPTION_KEY}
            outbound-connector-url: /unified-party-api/v1/accounts/
            httpMethod: POST
          account-sub-two:
            subscriptionkey: ${ACCOUNT_SUBSCRIPTION_KEY_TWO}
            outbound-connector-url: /unified-party-api/v2/accounts/
            httpMethod: POST

`backbase.grandcentral.apim.topicEndpoints.${topic}.${topicSubscription}.httpMethod`

The consumer supports two HTTP methods: POST or PATCH.

Azure Service Bus configuration

`backbase.grandcentral.events.servicebus.fullyQualifiedNamespace`

Fully qualified namespace of the Azure Service Bus, used to connect to the hosted Service Bus using managed identity. For example: my-sb-namespace.servicebus.windows.net.

`backbase.grandcentral.events.servicebus.topicConsumers.${topic}.${topicSubscription}.numOfConcurrentSessions`

Configuration under topicConsumers applies to a specific topic and subscription. Sets the number of concurrent sessions for the Azure Service Bus processor.

`backbase.grandcentral.events.servicebus.topicConsumers.${topic}.${topicSubscription}.sessionEnabled`

Boolean flag that sets whether the Azure Service Bus processor has sessions enabled for the topic subscription. The configuration must match the Azure Service Bus deployment. A mismatch in session configuration causes the processing client to fail.

Example event configuration

backbase:
  grandcentral:
    events:
      servicebus:
        fully-qualified-namespace: ${FULLY_QUALIFIED_NAMESPACE}
        topic-consumers:
          account:
            account-sub:
              num-of-concurrent-sessions: 1
              session-enabled: false
          transaction:
            transaction-sub:
              num-of-concurrent-sessions: 1
              session-enabled: true

Troubleshooting

Session configuration mismatch

If the consumer fails to process messages, verify that the session-enabled value in consumer.values.yaml matches the requiresSession value in servicebus.values.yaml for each subscription. A mismatch causes the processing client to fail.

Producer startup failure — no active topics

The producer fails on startup if backbase.grandcentral.events.servicebus.activeTopics is empty or missing. Verify the property contains at least one topic name.

Connector cannot reach the producer

Confirm the connector pod has both required labels: app.gcservices.io/synchub-enabled: "true" and app.gcservices.io/synchub-type: "producer". Without these labels, intra-cluster network policy blocks the connection.

ArgoCD sync failure for topics or subscriptions

Check the aso-asb app in ArgoCD for the runtime. Common causes include invalid YAML in servicebus.values.yaml, missing Azure Service Operator CRDs, or insufficient permissions on the Azure Service Bus namespace.

Next steps

Sync Hub overview: Return to the Sync Hub overview.
Integration patterns: Explore the five core integration patterns and when to use each.
Use cases: See real-world examples of Sync Hub in action across banking scenarios.

​Prerequisites

​How the pieces fit together

​Topic and subscription management

​Location of the configuration

​Configuration schema

​Example configuration

​How ArgoCD applies changes

​Producer deployment and configuration

​Deploy the producer

​Required producer configuration

​backbase.grandcentral.events.servicebus.fullyQualifiedNamespace

​backbase.grandcentral.events.servicebus.activeTopics

​backbase.grandcentral.events.servicebus.sessionGroups.${topic}

​Call the producer

​Connector labels required

​Service URL

​Producer endpoint

​Required request headers

​Optional request headers

​Example request

​Call the producer from an inbound connector

​Consumer deployment and configuration

​Deploy the consumer

​Required consumer configuration

​Azure API Management configuration

backbase.grandcentral.apim.http.baseUrl

backbase.grandcentral.apim.http.subscriptionHeaderKeyName

backbase.grandcentral.apim.topicEndpoints.${topic}.${topicSubscription}.outboundConnectorUrl

backbase.grandcentral.apim.topicEndpoints.${topic}.${topicSubscription}.httpMethod

​Azure Service Bus configuration

backbase.grandcentral.events.servicebus.fullyQualifiedNamespace

backbase.grandcentral.events.servicebus.topicConsumers.${topic}.${topicSubscription}.numOfConcurrentSessions

backbase.grandcentral.events.servicebus.topicConsumers.${topic}.${topicSubscription}.sessionEnabled

​Example event configuration

​Troubleshooting

​Next steps

Prerequisites

How the pieces fit together

Topic and subscription management

Location of the configuration

Configuration schema

Example configuration

How ArgoCD applies changes

Producer deployment and configuration

Deploy the producer

Required producer configuration

`backbase.grandcentral.events.servicebus.fullyQualifiedNamespace`

`backbase.grandcentral.events.servicebus.activeTopics`

`backbase.grandcentral.events.servicebus.sessionGroups.${topic}`

Call the producer

Connector labels required

Service URL

Producer endpoint

Required request headers

Optional request headers

Example request

Call the producer from an inbound connector

Consumer deployment and configuration

Deploy the consumer

Required consumer configuration

Azure API Management configuration

`backbase.grandcentral.apim.http.baseUrl`

`backbase.grandcentral.apim.http.subscriptionHeaderKeyName`

`backbase.grandcentral.apim.topicEndpoints.${topic}.${topicSubscription}.outboundConnectorUrl`

`backbase.grandcentral.apim.topicEndpoints.${topic}.${topicSubscription}.httpMethod`

Azure Service Bus configuration

`backbase.grandcentral.events.servicebus.fullyQualifiedNamespace`

`backbase.grandcentral.events.servicebus.topicConsumers.${topic}.${topicSubscription}.numOfConcurrentSessions`

`backbase.grandcentral.events.servicebus.topicConsumers.${topic}.${topicSubscription}.sessionEnabled`

Example event configuration

Troubleshooting

Next steps
